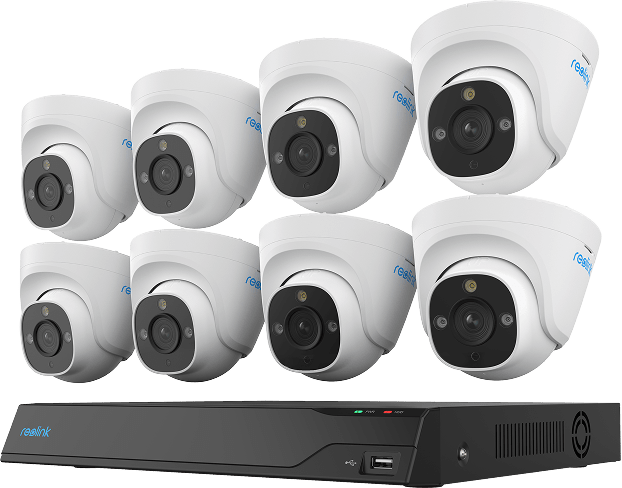

NVS16-12MD8
4K+ 12MP 16+8 Channel PoE Security System
4.2 of 5
Features
12MP Resolution
Smart Detection
Two Ways Audio
Spotlights & Siren
Color Night Vision
Stories
Intro
Unboxing

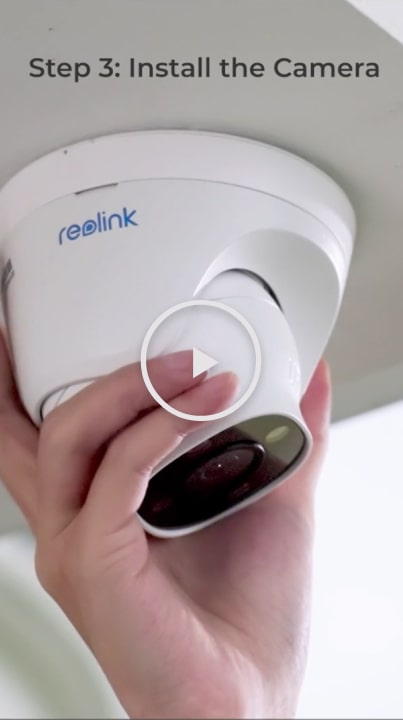

Camera Installation
Configuration & Installation
Footage
Specs
NVS16 NVR
Video
Input Up to 24 IP Cameras (Max.16 wired cameras)
HMDI Output Up to 3840 x 2160
VGA Output Up to 1920 x 1080
Audio
Input Cameras with built.in mic
Output 1 channel, RCA & HMDI
Recording
Live View/Playback Up to 16MP
Hard Drive Support 4 TB SATA HDD included. 2 x internal port, 8TB max for each port (16TB in total)
Connection
Network Interface RJ45
USB Interface 2 x USB 2.0
General
PC OS Supported Windows, Mac OS
Smartphone OS Supported Android, iOS
Dimensions 12.99 x 1.77 x 12.36 in (330 x 45 x 314 mm)
Weight 5.29 lbs (2.4kg)
NVC-D12M CAMERA
Video & Audio
Video Resolution 12MP (4512 x 2512) @20fps
Lens f=4mm, F=1.6
Viewing Angle Diagonal 123°
Night Vision Up to 100ft (30m)
Color Night Vision Spotlight 1pc/4.3w/6500K/700 Lumens
IR Cut Filter Yes
Audio Two-way audio
Siren Yes
Software Features
Smart Alarm Person/ Vehicle/ Pet/ Motion detection
Record Mode 24/7 recording; scheduled recording; motion recording
General
Operating Temp. 14 °F ~ 131 °F (-10 °C ~ 55 °C)
Weatherproof Yes, IP67 rated
Dimensions 4.62 x 4.09 in (117.4 x 103.8 mm)
Weight 1.16 lbs (526g)
Tutorials
How to Set up the Reolink PoE Camera System (3 Mins)
How to Reset Your Reolink NVR in 5 Quick Ways
How to Set up Motion Detection via the Reolink App, Client, or NVR
What's in the box

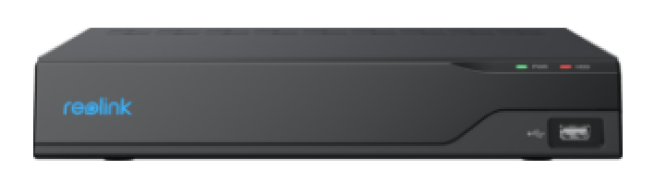

NVS16

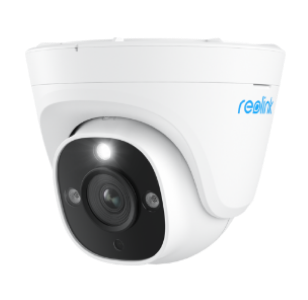

NVC-D12M
x8

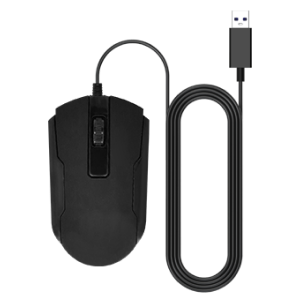

USB Mouse
NVR Power Adapter

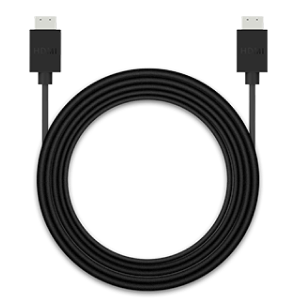

HDMI Cable

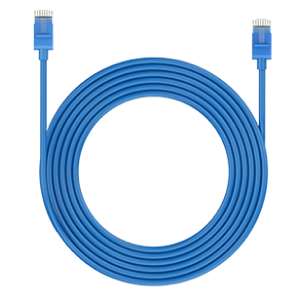

3ft Network Cable

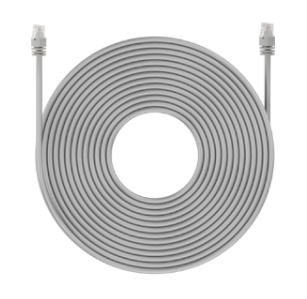

60ft Network Cable
x8
QSG

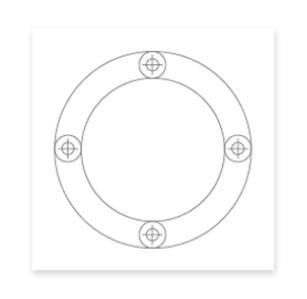

Mounting Template
Surveillance Sticker
Pack of Screws
